Design Amazing Logic Circuits with Smart Logic Simulator


Unlock your creativity by creating incredible logic circuits using logic gates, flip-flops, and hardware sensors from your smartphone. With a wide range of inputs and outputs at your disposal, you can go beyond simple components like an on-screen bulb. Utilize physical features such as the flashlight or vibration engine to enhance your projects. Additionally, various sensors like the proximity sensor and light sensor provide endless possibilities for innovative circuit designs. For instance, imagine a circuit that automatically turns on the flashlight when it gets dark in the room!

Intuitive Interface for Easy Circuit Design


The Smart Logic Simulator simplifies the design process with its user-friendly interface. You can easily scale your projects using the integrated circuit feature, which allows for the consolidation of advanced circuits into single, reusable components. Import these components as many times as you need to streamline your workflow. Plus, our dependencies manager keeps all integrated circuits organized within a single file, making it easy to share your creations with friends.

Available Components

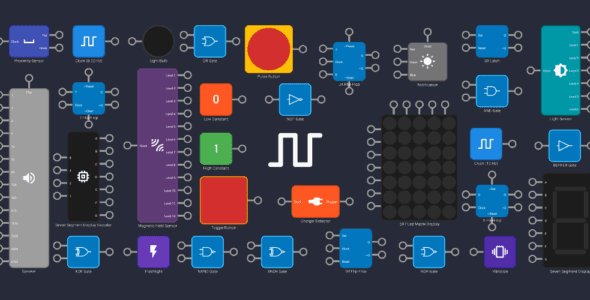

Explore a diverse list of components that you can use in your circuits:



  • AND Gate

  • BUFFER Gate

  • NAND Gate

  • NOR Gate

  • NOT Gate

  • OR Gate

  • XOR Gate

  • XNOR Gate

  • Proximity Sensor - Measures the proximity of an object relative to the view screen of a device.

  • Charger Detector - Returns a high signal when a device is charging.

  • Light Sensor - Measures the ambient light level.

  • Magnetic Field Sensor - Measures the ambient geomagnetic field.

  • Seven Segment Display

  • Seven Segment Display Decoder

  • 5X7 Led Matrix Display

  • Light Bulb

  • Flashlight

  • Speaker - Generates sound with a given frequency.

  • Vibration - Makes your device vibrate when an input signal is high.

  • Clock (0.2Hz, 0.5Hz, 1Hz, 2Hz, 5Hz, 10Hz)

  • Pulse Button

  • Toggle Button

  • High Constant

  • Low Constant

  • Notification Component - Creates a notification with a given color.

  • SR Flip-Flop

  • JK Flip-Flop

  • T Flip-Flop

  • D Flip-Flop

  • SR Latch
